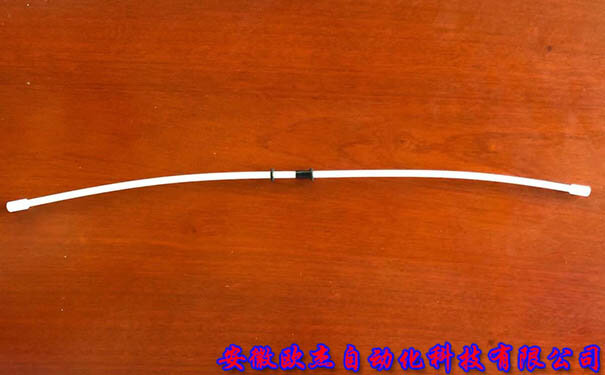

L11610F00 Wire Guide Hose

100% Genuine OTC DAIHEN L11610F00 High-Flexibility Wire Guide Hose for Robotic Welding

The OTC DAIHEN L11610F00 Wire Guide Hose (Wire Liner / Conduit) is the crucial “artery” for wire feeding in OTC robotic automation systems. Deployed between the bulk wire drum (or spool) and the wire feeder, or integrated within the robot’s dress pack, this hose endures continuous twisting, bending, and external abrasion during complex 3D robotic movements. Utilizing a stiff or rough-walled aftermarket hose inevitably causes severe wire feeding resistance, leading to motor overload, catastrophic “bird-nesting” at the drive rolls, and unstable arc performance. Upgrading to this 100% genuine Japanese-made high-flexibility hose ensures buttery-smooth wire delivery and eliminates production downtime caused by feeding interruptions.

🔍 Armor-Grade PU Jacket & Ultra-Low Friction Inner Liner

• Polyurethane (PU) Armor Jacket: Designed specifically to survive the brutal friction inside robotic cable tracks (drag chains) and dress packs, the L11610F00 discards cheap PVC for an industrial-grade Polyurethane outer layer. It offers exceptional resistance to mechanical wear, crushing, and chemical corrosion from cutting fluids, ensuring the hose never splits or degrades under constant dragging.
• Self-Lubricating Low-Friction Inner Wall: The secret to flawless wire feeding lies in the dynamic friction coefficient of the inner core. This OEM hose features a specialized polymer inner extrusion that allows the welding wire to glide as if on ice. It drastically reduces the workload on the wire feeder motor and completely eradicates the “stop-and-go” micro-stutters that ruin weld bead aesthetics.
• Extreme Bending Fatigue Resistance: Robotic arms frequently contort into tight angles when welding complex pipe intersections or blind corners. The L11610F00 is engineered with ultimate kink resistance. Even at minimal bending radii, the internal bore maintains a perfect circle without flattening out, guaranteeing unobstructed wire passage.

🛠 Expert Maintenance Guide: Preventing Kinks & Dust Clogs

• 🚨 Routing Rule: Absolute Zero Kinking! When installing the L11610F00, the routing path dictates its lifespan. **Ensure the maximum possible bending radius throughout the dress pack and avoid any sharp angles or “kinks” (radius < 150mm).** A hose pulled too tight or bent too sharply will cause friction to spike exponentially, resulting in instant wire jamming.
• Routine Purging of Metallic Dust: As the welding wire travels, microscopic amounts of copper plating or anti-rust coatings scrape off and accumulate inside the hose. Over time, this creates a gritty, high-friction barrier. **Maintenance teams must disconnect the hose and blow it out with dry, high-pressure compressed air every 1-2 weeks (or during wire drum changeovers)** to keep the inner channel pristine.
• Perfectly Square Cuts Are Mandatory: When trimming the L11610F00 to fit your specific robotic cell distance, **you must use a professional tube cutter to achieve a perfectly 90-degree, burr-free cut.** Using standard pliers pinches the tube and leaves sharp inner burrs, which will constantly shave metal off the welding wire, creating instant blockages at the entry point.
